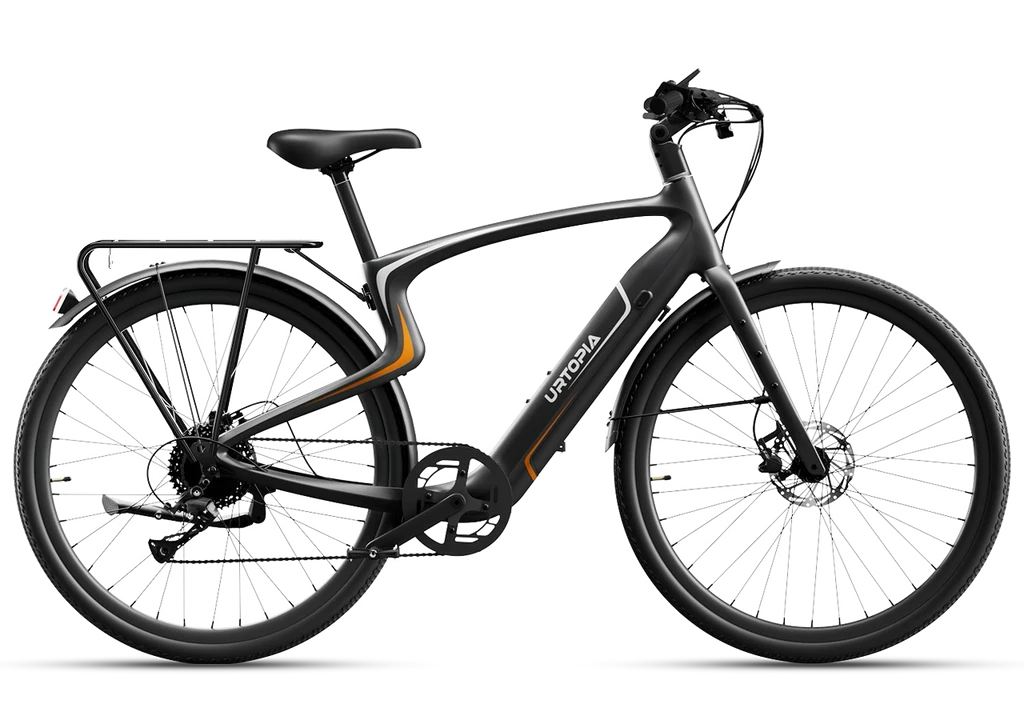

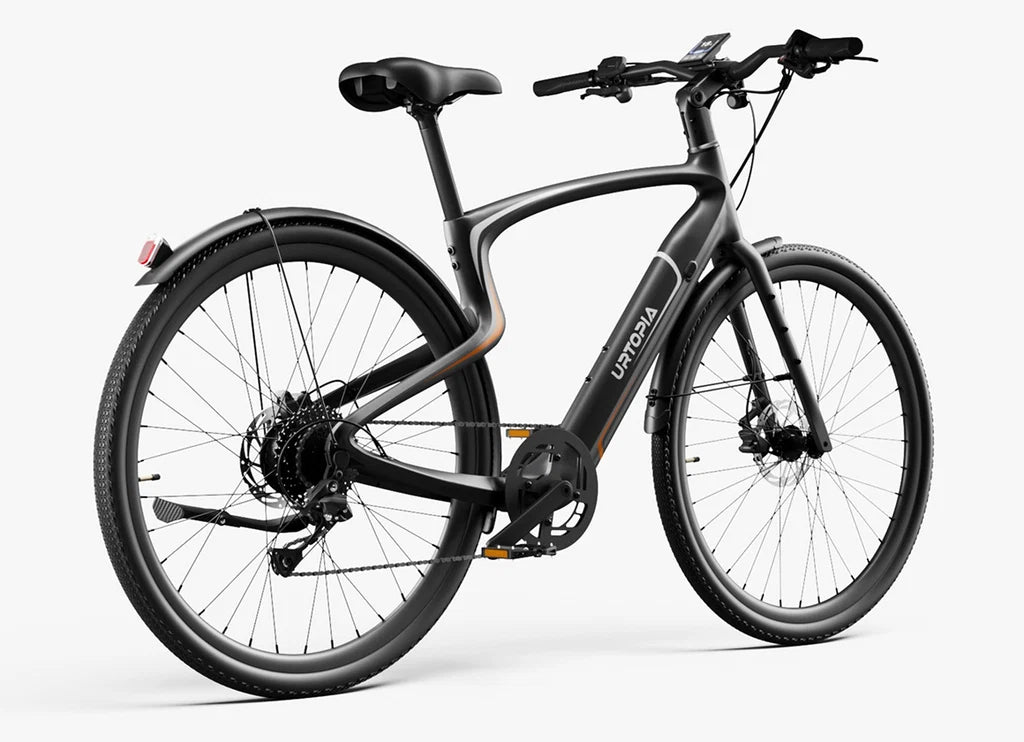

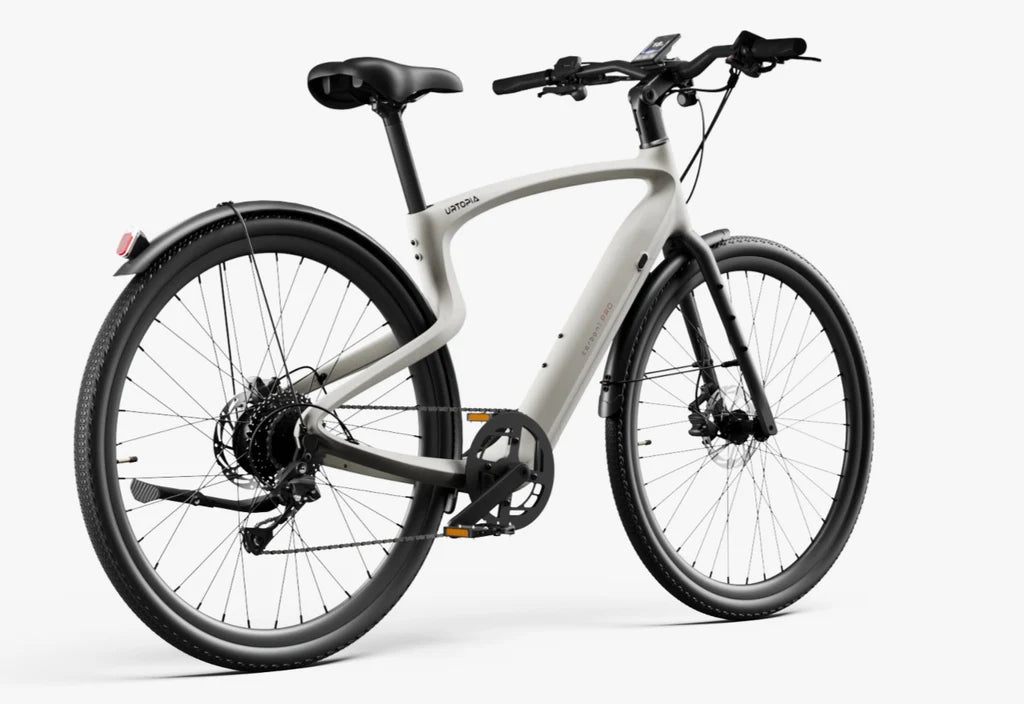

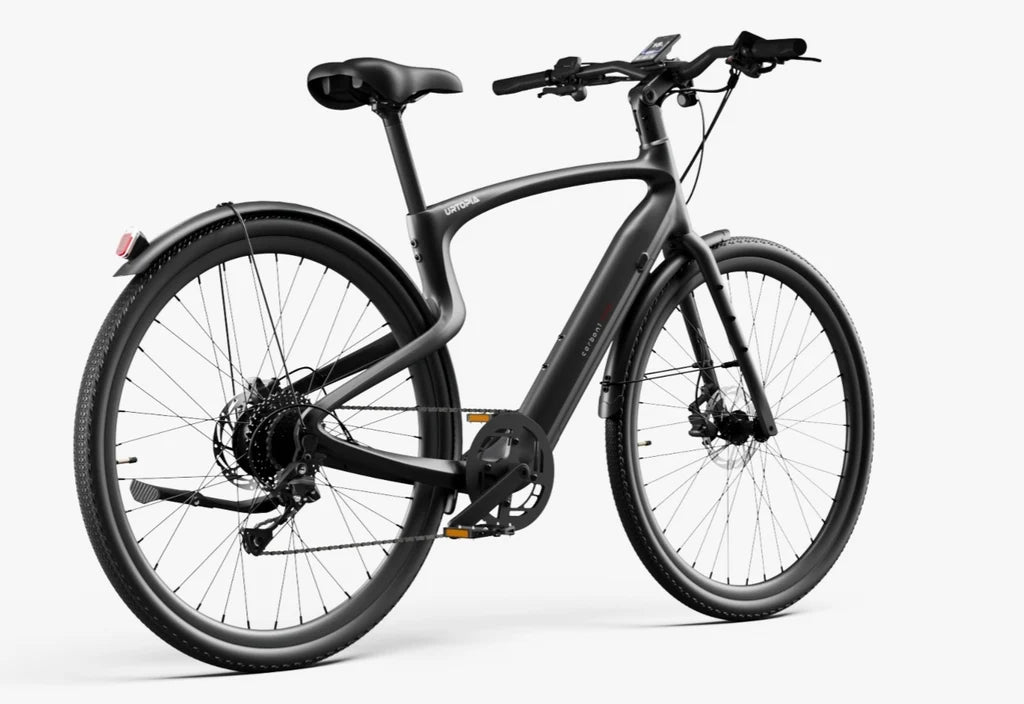

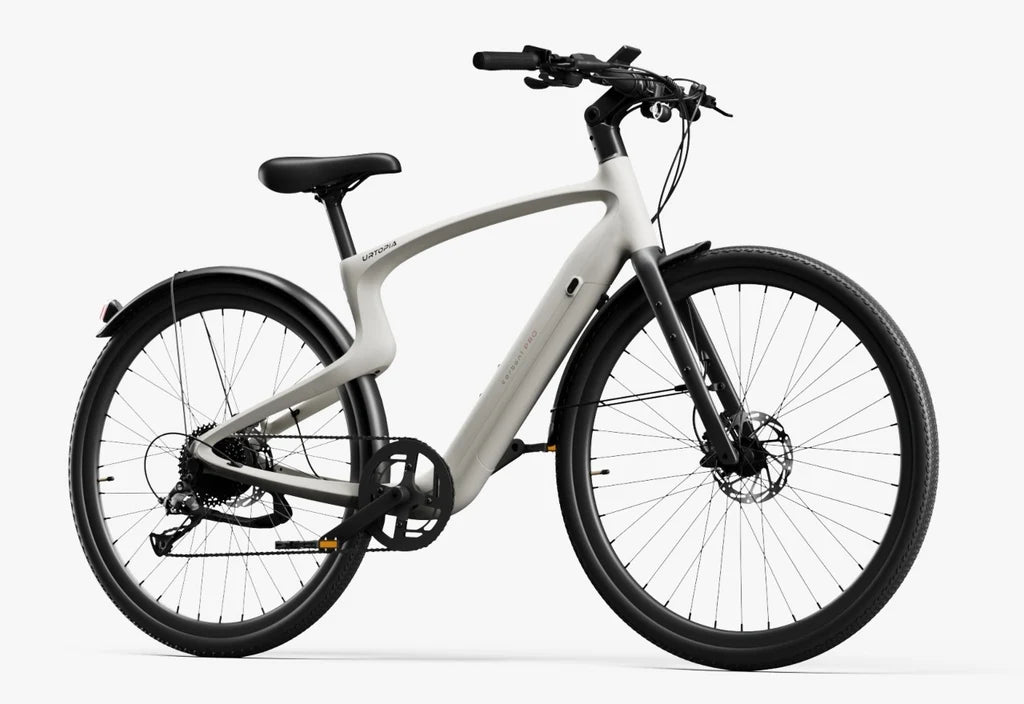

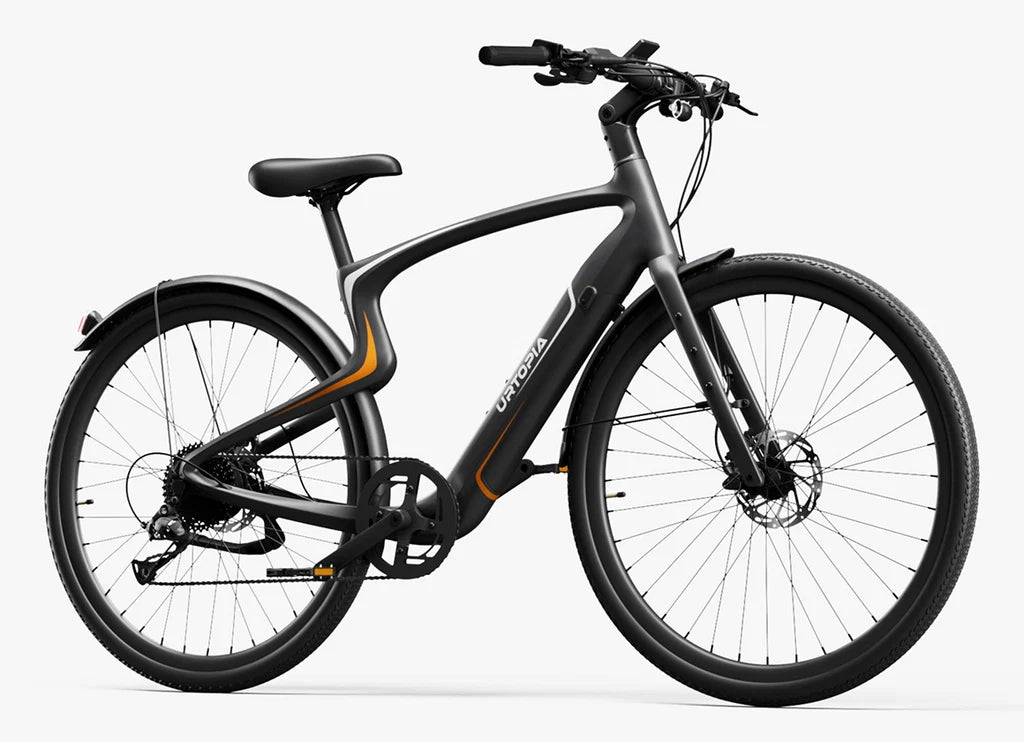

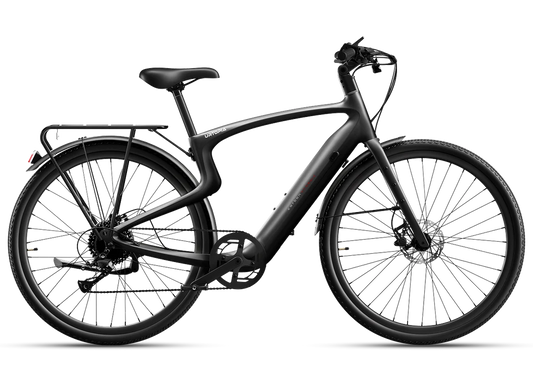

Carbon Classic

Regular price $2,299.00

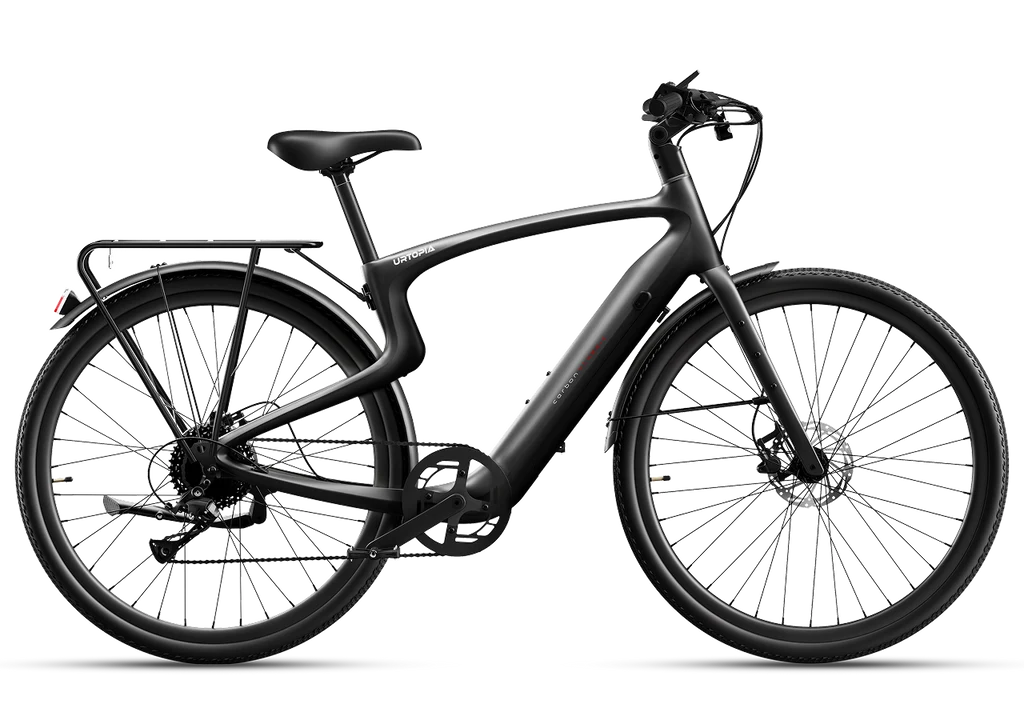

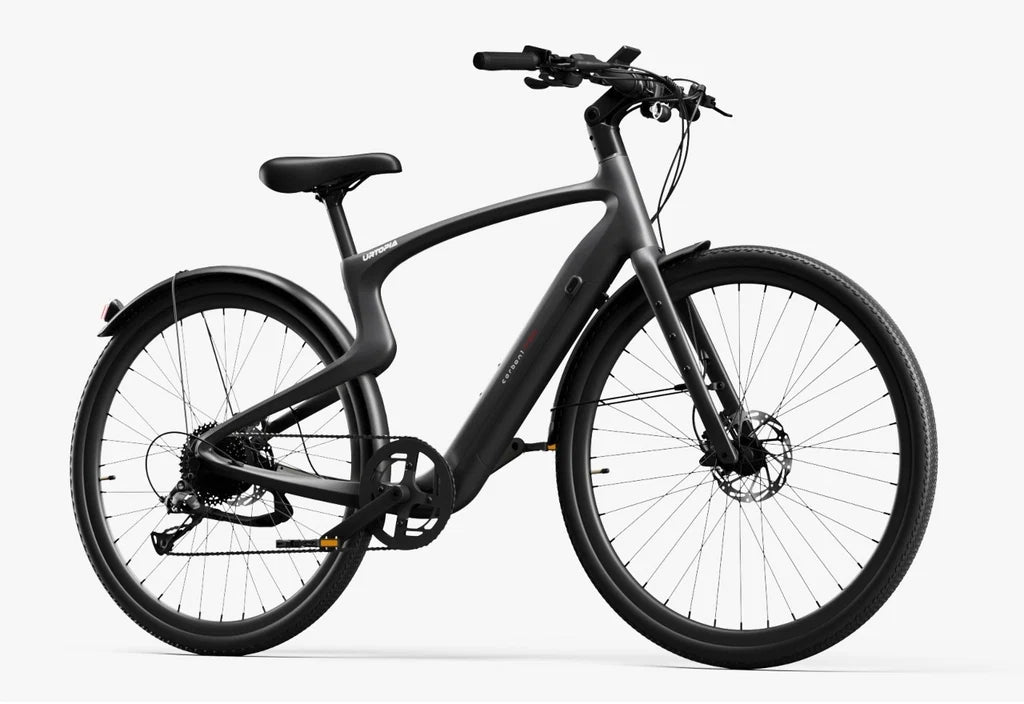

Color: Matte Black
Size: S Fit for 5’3’’~5’9’’Inseam 30’’
Compare Color
Click On Color / Pattern To Compare, Click And Drag Images To Reorder
Ask a Question

Hurry Up! Only 20 left in stock!

Estimate delivery times: 3-6 days (International)

Return within 45 days of purchase. Duties & taxes are non-refundable.

Carbon Classic
Carbon Classic
Regular price $2,299.00

Geometry & Sizing

Specification Small Medium Large
Recomm. rider height 5'3"~5'9" 5'7"~6'1" 5'11"~6'5"
A. Max Seat Height 905 mm (36") 965 mm (38") 1010 mm (40")
B. Min Seat Height 830 mm (33") 905 mm (36") 950 mm (37")
C. Handlebar grips height 1100 mm (43") 1120 mm (44") 1130 mm (44")
D. Seat tube length 421 mm (17") 463 mm (18") 498 mm (20")
E. Wheelbase 1065 mm (42") 1093 mm (43") 1122 mm (44")
F. Overall length 1766 mm (70") 1795 mm (71") 1824 mm (72")
G. Wheel diameter 702 mm (28") 702 mm (28") 702 mm (28")
H. Top tube length (effective) 594 mm (23") 618 mm (24") 653 mm (26")
I. Head tube length 152 mm (6") 170 mm (7") 180 mm (7")
J. Standover height 779 mm (31") 804 mm (32") 833 mm (33")



General Specifications

Model Carbon Classic E-bike
Ideal use Commuter
Bike Weight 41 lbs (18.6kg)
Net Weight
38 lbs (17.4kg) w/ battery, 33 lbs (15.2kg) w/o battery
*All stated weight have tolerance <5%. Net weight excludes all accessories such as rack, kickstand, fender, pedals etc.
Material Carbon fiber frame & fork
Folding No
Frame style Step-Over
Pedal Assist Range
Up to 72 miles
*The range was tested with a 180 lb rider, riding in ECO mode on flat roads with pedal assist only and no throttle.
Top Speed
20mph by default, 25mph upon unlock
Total Payload Limit 240 lbs
Rider Height
Small: 5'3" - 5'9", Medium: 5'7" - 6'1", Large: 5'11" - 6'5"
Brakes TEKTRO Hydraulic disc brakes with power cut-off sensor
Wheels Kenda 700C x 40mm (45mm max.) tires
Bike Water Resistance IP65



Ebike System

Motor Power Rated Power 350W (Peak Power 500W) rear hub
Motor Max. Torque 45Nm

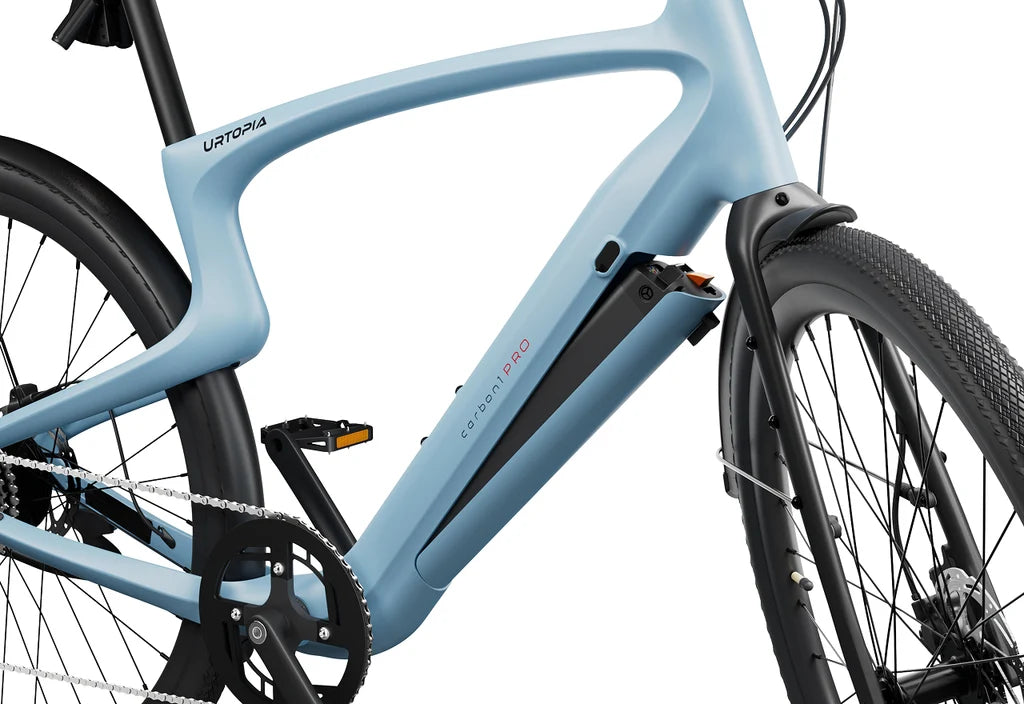

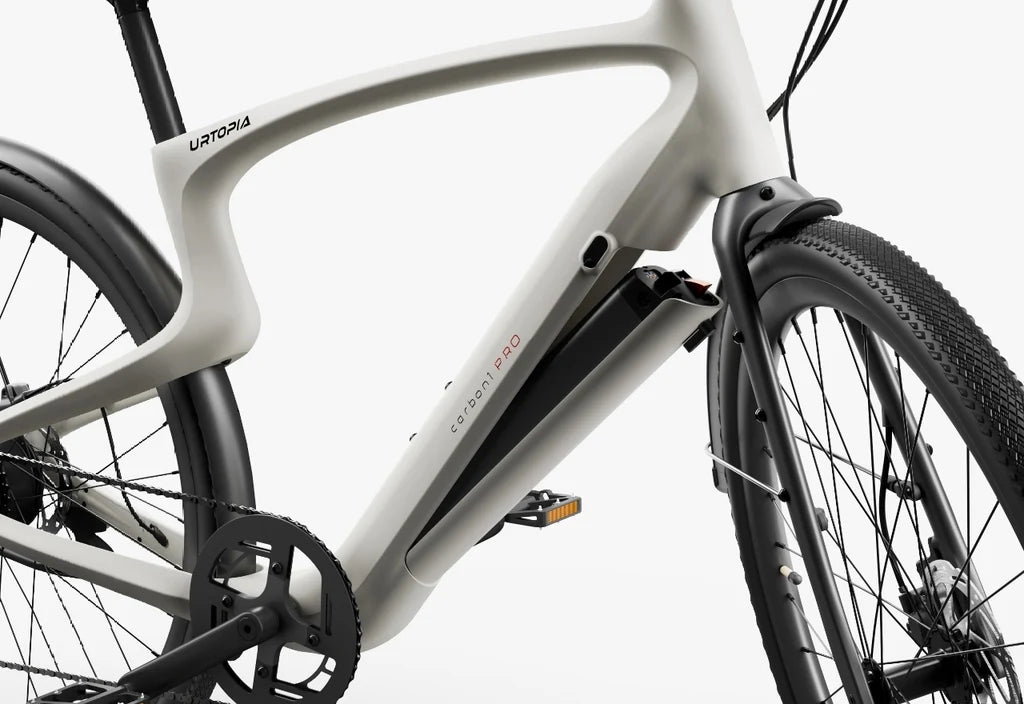

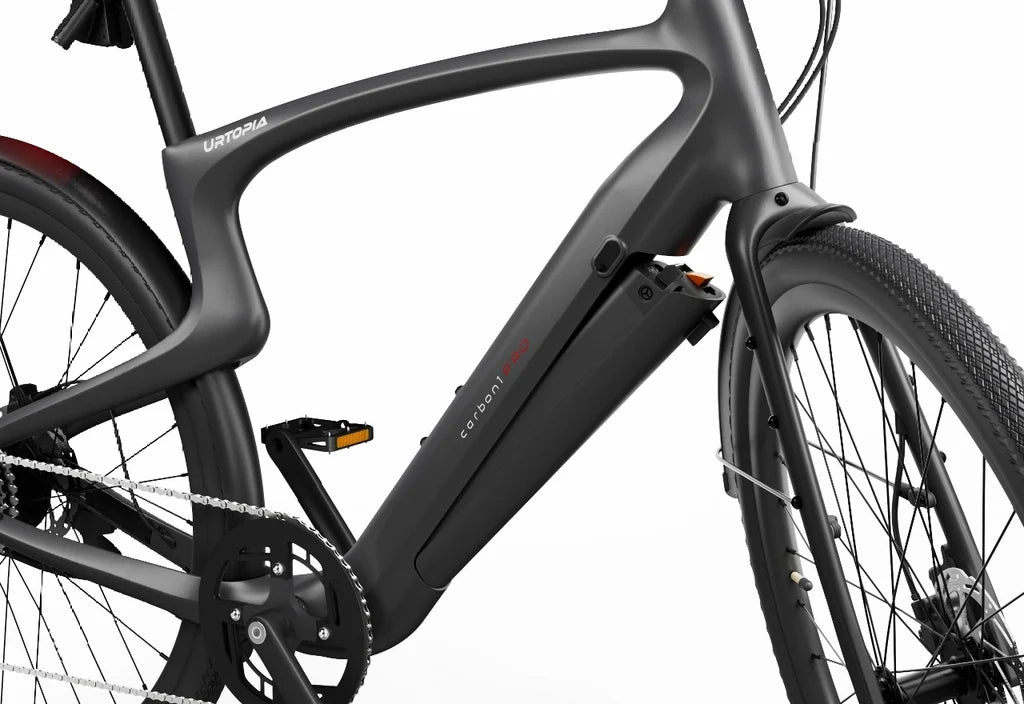

Battery 36V 9.8Ah (352.8Wh) Samsung Li-ion, Removable, UL 2271 & EN 50604 Certified
External Battery No
Pedal Assist 4 levels
Charger 36V 4A Fast Charger, 2.5-Hour Charging Time

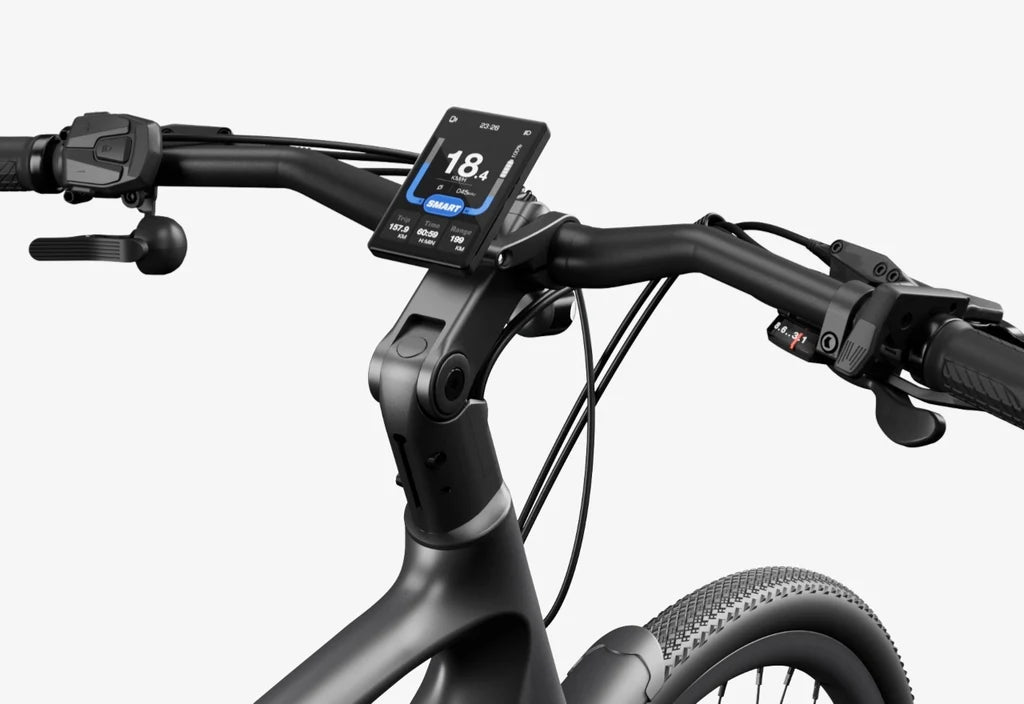

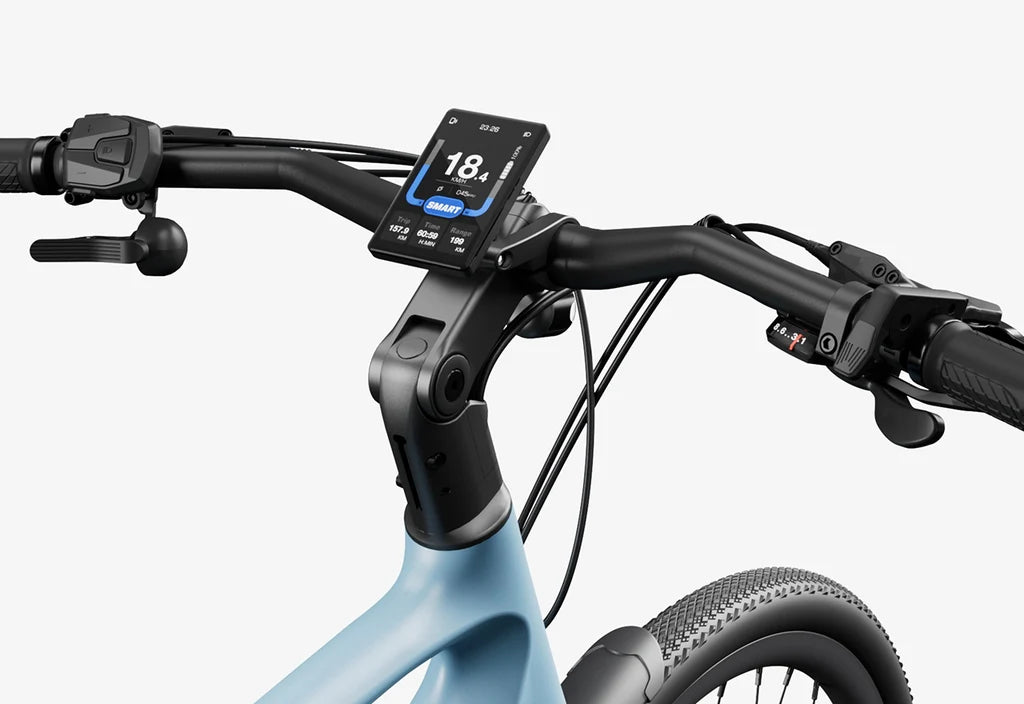

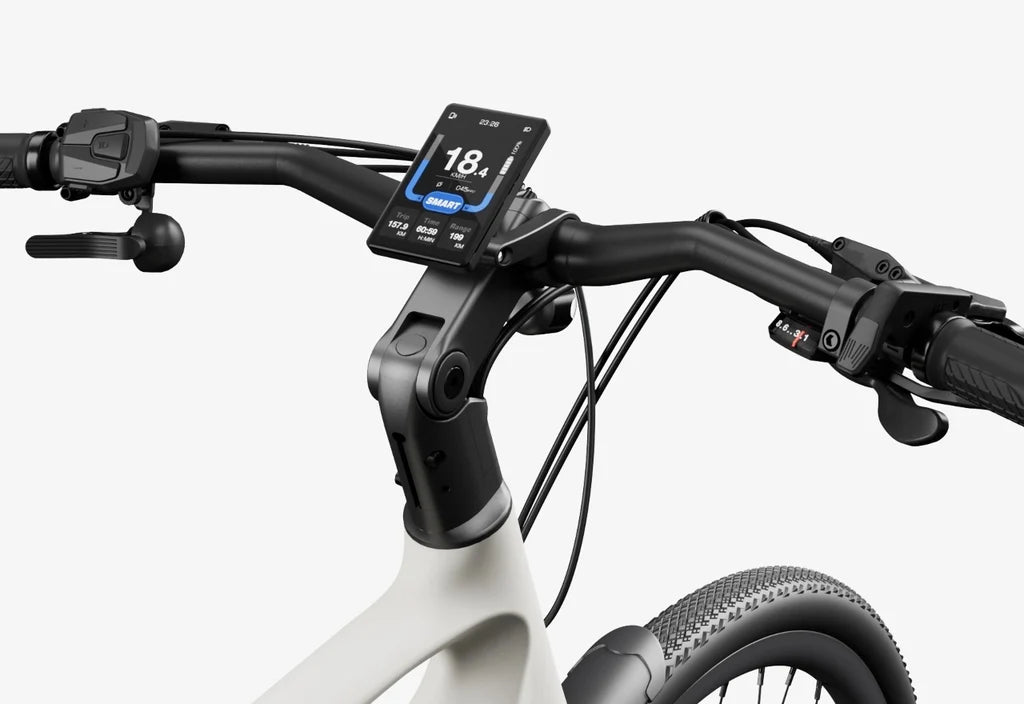

Display 3.5'' Color LCD display
Sensors Torque sensor, accelerometer
Lights
Front: External light, 30 lux
Rear: Fender-mounted tail light with brake sensing
Throttle Yes (up to 20mph)
Class
Class 2 by default
Class 3 upon unlock



Drivetrain

Chainrings 44T
Crankset Aluminum alloy, 170mm
Cassette 11T-40T, 8 speed
Chain Shimano 8-Speed
Rear Derailleur Shimano ACERA 8-Speed
Shift Lever 8 Speed Trigger
Pedals 9/16" Alloy Platform



Cockpit

Grips Durable ergonomic Grips, lockable
Seat Post
Aluminum Alloy, φ31.6mm
Total Length: 300mm (Size M & L), 250mm (Size S)
Marked Range: 100mm (Size M & L), 80mm (Size S)
Fork Carbon fiber fork
Saddle COINLLI saddle, 268×173×71mm
Handlebar Aluminum, 28.6mm Clamp, 720mm Wide
Stem Aluminum Stem, 0-90° adjustable

Smartbar

Smartbar features No
Connectivity No
Theft Defenses N/A
App Urtopia APP, only for OTA
SIM/Connect Service No
